HEPA Al-Sep for AHU Filters


HEPA Al-Sep High Temperature
up to 250degC

HEPA Final Filters

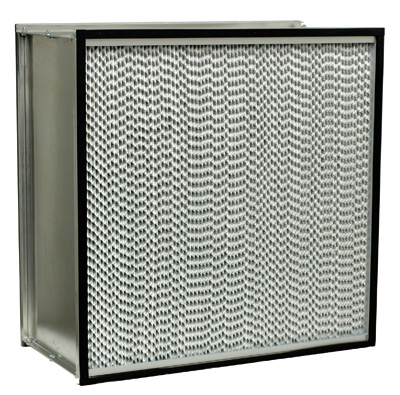

HEPA Al-Sep
....................................................

IES RP Type A/B/C/D/E
EN1822 Filter Grade: H11-H14,U15

Material: Fibreglass
Frame: Al / Wood /SS304
Header: No Header
Continuous Temperature: 70 deg cel
Final Pressure Drop: 500 Pa
Media Area: 151 sqft

Tradional Design of using Aluminum Separator to keep the fibreglass media apart. Used as Final layer in AHU and HVAC applications.Designed to be used in unidirectional cleanrooms to achive low turbulence flow. Usually used in AHU to achieve Class 10K and 100K cleanrooms.

downloadDownload technical specs in pdf version

Standard Capacity Airflow (SC)
Filter Size:
610 x 610 x 292mm - 1890 cmh @ 250Pa
610 x 610 x 150mm - 1000 cmh
@ 250Pa

High Capacity Airflow (HC)
Filter Size:
610 x 610 x 292mm - 3400 cmh @ 333Pa
610 x 610 x 150mm - 1620 cmh @ 250Pa

Filter grade: H13
DOP PSL @0.3um : 99.99%

For 12" thick
Initial Pressure Drop: 250 Pa @1890cmh (SC)
Initial Pressure Drop: 340 Pa @3400cmh (HC)
or 250 Pa @2500cmh (SC)

For 6" thick
Initial Pressure Drop: 250Pa @1000cmh (SC)
Initial Pressure Drop: 250Pa @1620cmh (SC)


HEPA Minipleat Filter



DTM HEPA module

RPM HEPA Module

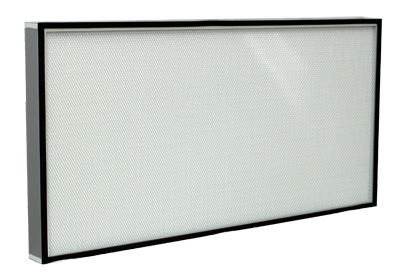

HEPA Minipleat
..............................................
IES RP Type C/D/E
EN1822 Filter Grade: H13,H14,U15

Material: Fibreglass
Frame: Anodised Extruded Al
Face Guard: Both sides expanded Al faceguard/diffuser
Continuous Temperature: 50 deg cel
Final Pressure Drop: 400 Pa
Media Area: 151 sqft

Used as Final layer in AHU and HVAC applications. The design of closely-pleated minipleat media area ensures high media area to ensure low pressure drop and high loading capacity. Designed to be used in directional cleanrooms to achive laminar air flow. The replacement of Al-Sepearator HEPA Filters.

optional: knife edge design, PU gel for knife edge terminal modules.

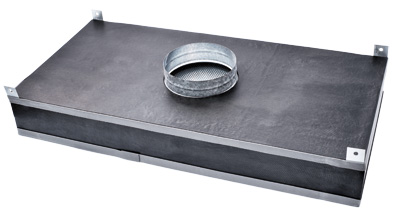

DTM Minipleat HEPA
..............................................

Disposable Terminal Module provides with a plenum box comes with insulation and 10" duct collar for cleanroom terminal installations provided both a cheaper and viable solution for Class 1K, 10K, 100K cleanroom design.

Terminal Module Height: 220mm

downloadDownload technical specs in pdf version

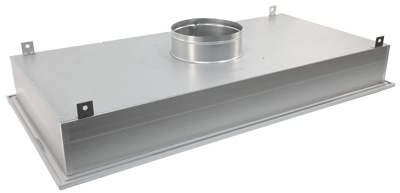

RPM Minipleat HEPA
..............................................

Replaceable Terminal Module provides with a plenum box of 10" duct collar for cleanroom terminal installations provided cheaper and easier replaceable HEPA filters throughout lifetime, leakfree installation and very short downtime for filter replacement. Suitable for use in cleanroom, hospitals, laboratories and low ceiling where DTM replacement is not feasible. Used for Class 1,100, 1K, 10K, 100K cleanroom design.

Available in GEL HEPA filter clip on easy replacement and leak free applications.

Available in T-grid and Ceiling Suspension

Terminal Module Height: 260mm

downloadDownload technical specs in pdf version

Air flow capacity at face velocity=0.45m/s
Filter Size:
610 x 610 x 70mm - 600cmh
915 x 610 x 70mm - 900cmh
600 x1210 x 70mm - 1200cmh

Filter grade: H13
DOP/ PSL @0.3um : 99.99%
Initial Pressure Drop: 120 Pa @ 600 cmh (SC)
Initial Pressure Drop: 90 Pa @ 600 cmh (HC)

Filter grade: H14
DOP/ PSL @0.3um : 99.999%
Initial Pressure Drop: 130 Pa @ 600 cmh (SC)
Initial Pressure Drop: 100 Pa @ 600 cmh (HC)

Filter grade: U15
DOP/ PSL @0.12um : 99.99995%
Initial Pressure Drop: 160 Pa @ 600 cmh (SC)
Initial Pressure Drop: 130 Pa @ 600 cmh (HC)

*SC: Standard Capacity
HC: High Capacity

DTM
Module & Filter Size: 595 x 595 x 220mm
Module & Filter Size: 600 x 600 x 220mm
Module & Filter Size: 595 x 1195 x 220mm
Module & Filter Size: 600 x 1210 x 220mm


RPM Ceiling Suspension
Module Size: 650 x 650 x 260mm
Filter Size: 558 x 558 x 85mm - 550cmh

Module Size: 650 x 1258 x 260mm
Filter Size: 558 x 1168 x 85mm - 1020cmh


RPM T-Grid
Module Size: 600 x 600 x 260mm
Filter Size: 558 x 558 x 70mm - 550cmh

Module Size: 600 x 1210 x 260mm
Filter Size: 558 x 1168 x 70mm - 1020cmh


HEPA Minipleat
Box-shaped


HEPA V
Single Header

HEPA V Minipleat
.....................................
IES RP Type C
EN1822 Filter Grade: H13


Material: Fibreglass
Frame: GI / Epoxy-coated Black
Header: No header (NH) or 22mm Single header (SH)
Continuous Temperature: 50 deg cel
Final Pressure Drop: 450 Pa
Media Area: 376 sqft

Used as Final layer in AHU and HVAC applications. The design of closely-pleated minipleat media area and v-shaped minipleat media pack ensures high media area to ensure low pressure drop and high loading capacity. Designed to be used in unidirectional cleanrooms to achive low turbulence airflow. The improved design for the replacement of high capacity Al-Sepearator HEPA Filters in AHU filter side.

downloadDownload technical specs in pdf version

Filter grade: H13
DOP PSL: 99.99%@0.3um

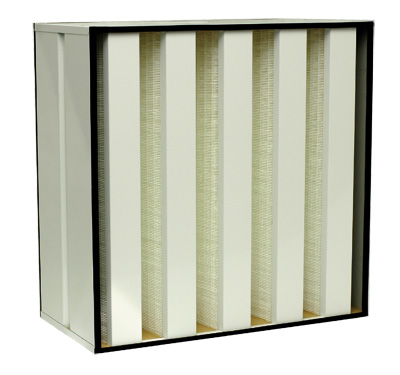

HEPA V Box-shaped NH
Filter Size: 610 x 610 x 292mm - 3400 cmh
Initial Pressure Drop: 250 Pa @3400cmh

HEPA V Box-shaped NH
Filter Size: 595 x 595 x 290mm - 3000 cmh
Initial Pressure Drop: 270 Pa @3000cmh

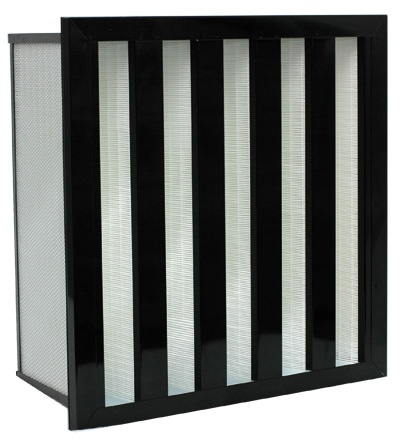

HEPA V Single Header
Filter Size: 592 x 592 x 292mm - 3000 cmh
Initial Pressure Drop: 280 Pa @3000cmh

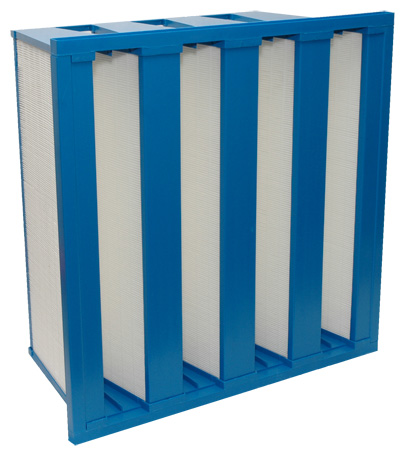

Semi-HEPA V-cell
Single Header H10, H11

Semi-HEPA V-cell Minipleat
.....................................
EN1822 Filter Grade: H10, H11

Material: Polyproplene or Fibreglass
Frame: Polystrene
Header: 22mm Single Header (SH)
Continuous Temperature: 50 deg cel
Final Pressure Drop: 450 Pa
Media Area: 194 sqft

Used as Final layer in AHU and HVAC applications. The design of closely-pleated minipleat media area and v-shaped minipleat media pack ensures high media area to ensure low pressure drop and high loading capacity. Designed to be used in unidirectional cleanrooms to achive low turbulence airflow. The replacement of standard capacity Al-Sepearator HEPA Filters in AHU filter side. Semi-Hepa H10 are usually used as replacement for secondary filters to protect 3rd or final layer Absolute HEPA filters.

downloadDownload technical specs in pdf version

Semi-HEPA V-cell H10
Filter Size: 595 x 595 x 292mm - 3400 cmh @170 Pa
Semi-HEPA V-cell H11
Filter Size: 595 x 595 x 292mm - 2550cmh @ 250 Pa

Filter grade: H10
EN1822 MPPS: 85%@MPPS
Initial Pressure Drop: 170 Pa @3400cmh

Filter grade: H11
DOP/ PSL @0.3um : 95.0%@0.3um
Initial Pressure Drop: 250 Pa @3400cmh

FFU SS430



Fan Filter Unit (Stainless Steel or ABS body)
.....................................
IES RP Type C/D/E
EN1822 Filter Grade: H13, H14, U15

Fan Unit Material: Stainless Steel 430 or Galvalnume or ABS
Material: Fibreglass
Frame: Anodised Extruded Al
Face Guard: Expanded Al faceguard/diffuser
Continuous Temperature: 70 deg cel
Final Pressure Drop: 400 Pa
Media Area: 151 sqft

An alternative for Terminal Modules, FFU comes with a centrifugal fan on top of Minipleat HEPA filters to provide sufficient airflow or pressure for the HEPA filters. FFU is used in directional cleanroom design to provide laminar air flow. Suitable for maintenance free cleanroom terminal installations to provide a longer lifespan on the HEPA filters. They are also used as a solution for fast setup laminar work stations to provide extra clean environment. Suitable for Class 100, 10K and 100K cleanroom design. ULPA option installations for Class 10.

downloadDownload technical specs in pdf version

ABS Fan Filter Unit
Filter Size: 600 x1210 x 330mm
Airflow Capacity: 1020cmh @ 120 Pa
Power Rating : 250W
Motor Voltage: 230V Single Phase@50Hz
Sound level: <62.0dbA

SS430 Fan Filter Unit
Filter Size: 604 x 1214 x 345mm
Airflow Capacity: 1020cmh @ 120 Pa
Power Rating : 180-230W
Motor Voltage: 230V Single Phase@50Hz
Sound level: <52.0dbA

Filter Size: 604 x 604 x 345mm
Airflow Capacity: 550cmh @120 Pa
Various sizes can be customised.


DOP HEPA Leak Test


OT HEPA Filter Installation
